Product model：WM（L）（B）-0.20～1.25。

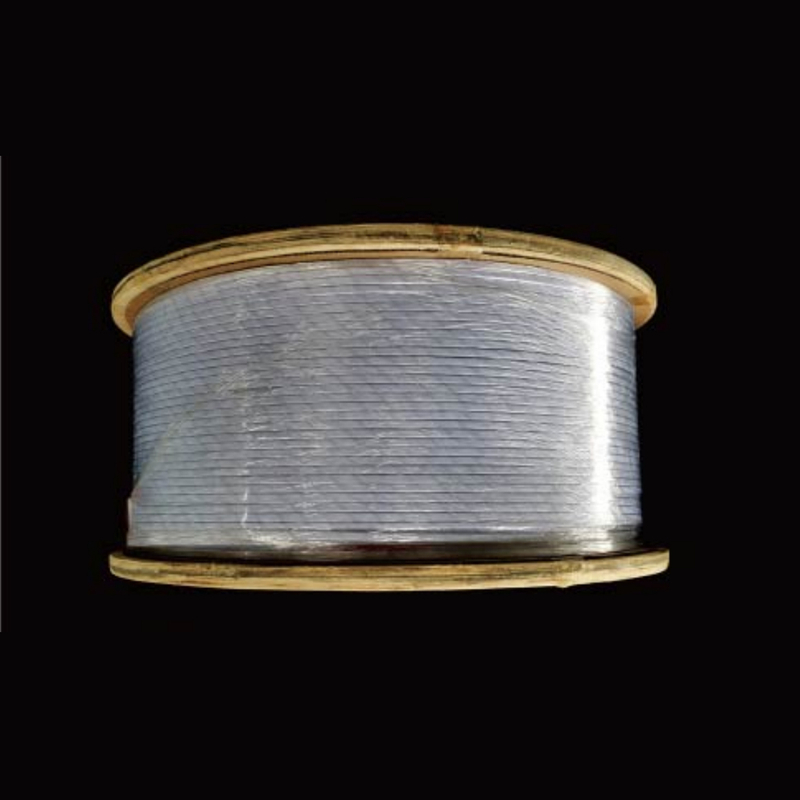

This product is produced by extrusion process (flat) copper (aluminum) wire wrapped with 2-3 layers of polyester film and electrical non-woven fabric as insulation layer, with excellent voltage resistance. Suitable for manufacturing type reactors.
Production range：
1. Cloth covered copper (aluminum) flat wire:
Thickness size -- A: 0.80 ~ 5.60mm;
Thickness size -- B: 2.00 ~ 16.00mm.
2. Cloth covered copper (aluminum) round wire -- D: 1.90 ~ 5.00mm.
If you choose specifications beyond the above range, please contact us.
Conductor material：
1. The aluminum wire meets the requirements of GB/T 55843-2009, and the resistivity at 20℃ should be ≤0.02801 ω ·mm²/m;
2. The copper wire complies with the requirements of GB/T 55842-2009, and the resistivity at 20℃ should be less than or equal to 0.01724 ω ·mm²/m.

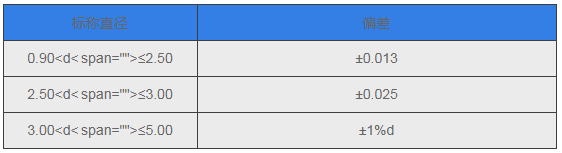

The dimensions of circular conductors shall be in accordance with the following table：

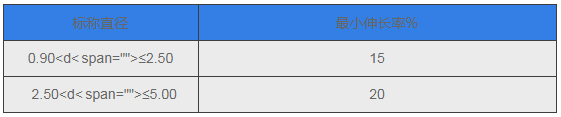

The elongation of circular conductor shall comply with the following table：
