Are Enamel Wires Insulated​

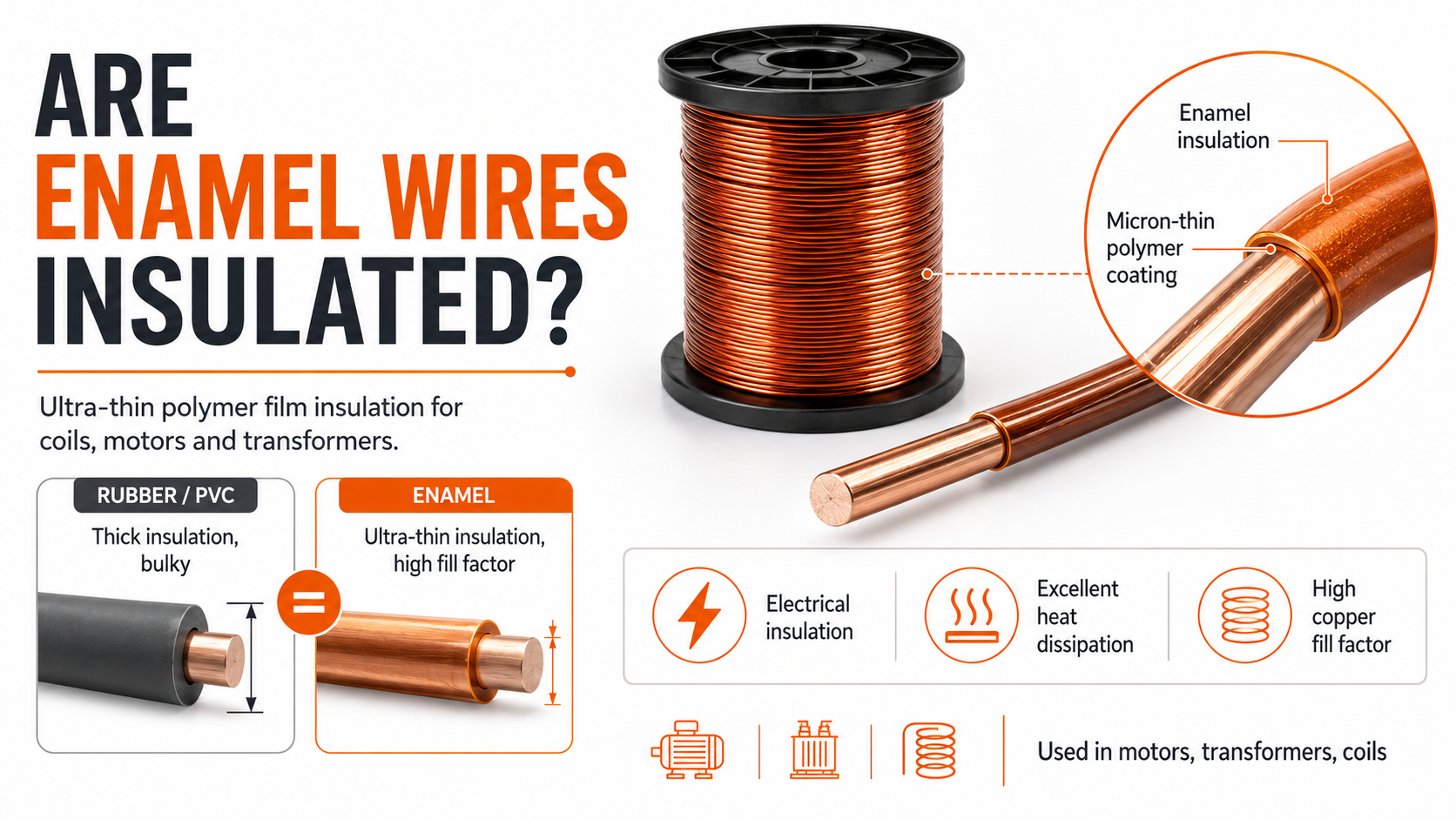

Yes, enameled wire is insulated, but its insulation mechanism fundamentally differs from the thick rubber or PVC jackets found on standard electrical cables. The insulation consists of microscopic, highly engineered polymer films (enamels) applied directly to the bare conductor (usually oxygen-free copper or aluminum).

For engineers and procurement managers, the challenge is rarely verifying if the wire is insulated, but rather specifying the exact chemical composition, thermal rating, and thickness grade required to balance dielectric strength with spatial constraints in motor, transformer, or coil winding applications. You must navigate varying thermal requirements and tight physical dimensions daily. This guide explores the foundational engineering principles of polymer films. It will help you choose the right materials to ensure long-term reliability in your specific electromagnetic projects.

Key Takeaways

• Enameled wire relies on up to 30 micro-layers of polymer resin, providing critical dielectric shielding while maintaining exceptional thermal conductivity.

• Insulation types are highly specialized, ranging from solderable Polyurethane (PUR) for low-temperature electronics to Polyamide-imide (PAI) for heavy-duty, high-temperature industrial motors.

• Selecting the correct wire requires matching international insulation thickness standards (NEMA Single/Heavy/Triple or IEC Grade 1/2/3) to your specific current density and operating environment.

• Processing risks are high: the ultra-thin enamel is susceptible to mechanical abrasion during winding, and incorrect specification can lead to early dielectric failure or severe assembly bottlenecks.

The Anatomy of Enameled Wire Insulation

The Physical Structure: Factories achieve this insulation through a rigorous, highly controlled manufacturing process. They apply highly viscous liquid polymers directly onto the metal substrate. These liquid enamels often have a solid content ranging from 8% to 60%. Production lines utilize specialized dies or precision felts to control the application rate perfectly. The coated wire then passes through multi-pass curing ovens. Extreme heat solidifies the liquid resin into a resilient, flexible film.

Micro-Layering: High-quality enameled wire features up to 30 distinct, flawlessly bonded coats. Manufacturers do not apply the polymer in a single thick layer. A single thick application would likely trap air bubbles or create surface irregularities. Instead, applying multiple microscopic layers prevents pinholes entirely. This micro-layering guarantees consistent dielectric resistance across the entire length of the spool.

Thermal vs. Electrical Properties: You must differentiate magnet wire from standard building wire. Thick PVC on standard cables blocks both electricity and heat. Magnet wire operates differently. The enamel is designed to be highly thermally conductive. Tightly wound electromagnetic coils generate immense heat under load. The thin polymer film allows tightly wound coils to dissipate heat efficiently. Simultaneously, it acts as a strict electrical barrier. This barrier prevents destructive turn-to-turn short circuits deep inside the motor core.

Rubber vs. Enamel: Why Magnet Wire Uses Polymer Films

The Space Factor (Fill Factor): Standard plastic or rubber insulation is completely unviable for electromagnetic applications. Rubber takes up too much physical volume. Enamel allows maximum copper density within extremely confined spaces, like stator slots or transformer cores. More copper crammed into a smaller space directly increases the magnetic field strength. It also significantly boosts the electrical efficiency of the unit. Engineers call this crucial metric the slot fill factor.

High-Frequency Realities: Modern electronics introduce complex electrical behaviors like the skin effect. The skin effect becomes highly notable at frequencies greater than 10 kHz. Alternating current pushes toward the outer surface of the conductor, abandoning the center. Thin-film insulation helps engineers manage compact, specialized winding patterns. They can weave intricate, multi-strand setups to mitigate high-frequency losses. Thick rubber jackets make these tight configurations impossible.

The Fragility Trade-off: We must present a balanced view. While enamel saves immense space and survives high heat, it is inherently brittle compared to rubber. You must handle it with extreme care on the production floor. It requires tension-controlled, precision winding machinery. A misaligned guide wheel can cause microscopic flaking or scratching. Even minor scratches expose bare copper, inviting immediate electrical failure.

Evaluating Enamel Polymers for Specific Operational Outcomes

Chemical composition dictates performance capability. You must match the specific polymer chemistry to your intended application. Below is a decision-stage matrix for modern insulation materials.

Polyurethane (PUR) for Assembly Speed

Polyurethane is best for small transformers, relays, and micro-motors. Its key advantage is excellent solderability. The enamel typically melts and acts as a flux at 150°C–375°C depending on the specific grade. This unique chemical property eliminates the need for mechanical stripping entirely. Workers or automated machines can solder joints directly. This drastically speeds up high-volume manufacturing assembly lines.

Polyesterimide (PEI) & Polyamide-imide (PAI) for Thermal Endurance

These robust polymers are best for heavy-duty electric motors, automotive alternators, and high-stress industrial environments. Their key advantage lies in exceptional thermal stability. They can endure continuous operating temperatures exceeding 200°C without breaking down. PAI specifically offers superior mechanical resistance against winding stress. It also provides a strong chemical defense against aggressive industrial solvents.

Polyvinylformal (PVF) for Chemical Stability

PVF is best for large oil-filled generators and massive power grid transformers. Its key advantage is long-term chemical stability. The coating is highly resistant to transformer oil degradation. It firmly resists hydrolysis even under constant fluid immersion. This ensures the transformer operates safely for decades.

Corona-Resistant Systems for Inverter Drives

These advanced systems are best for variable frequency drive (VFD) motors. Their key advantage is mitigating electrical erosion. VFDs create rapid, localized high-voltage spikes known as corona discharges. Standard enamel burns away under this stress. Corona-resistant wire utilizes specialized primer-and-topcoat systems. Manufacturers often integrate nano-technology directly into the resin. The nanoparticles disperse the electrical stress to prevent premature dielectric breakdown.

Engineering Specifications and Compliance Frameworks

Insulation Thickness Standards: You must clarify the global classification systems used to evaluate dielectric thresholds before purchasing.

1. Compare IEC vs. NEMA: The global market uses IEC specifications (Grade 1, 2, and 3) alongside North American NEMA equivalents (Single, Heavy, Triple build).

2. Understand Dielectric Gains: Increasing the build grade increases the overall dielectric breakdown voltage. A Grade 3 wire withstands much higher voltage spikes than a Grade 1 wire.

3. Accept the Space Penalty: Thicker insulation sacrifices overall slot fill factor. You fit fewer turns of wire into the same motor slot if you choose a heavier build.

Baseline Lifespan Calculations: Industry-standard temperature ratings dictate expected longevity. Ratings like 155°C or 200°C are typically benchmarked against a rigorous 20,000-hour operational lifespan. Exceeding these rated temperatures exponentially degrades the polymer film. For every 10°C to 15°C you operate above the thermal index, the wire's expected lifespan drops by roughly half. Continuous overheating turns the flexible polymer brittle, leading inevitably to flaking and short circuits.

Conductor Material Impact: You must also briefly touch upon base substrate choices. Engineers sometimes swap copper for aluminum to save significant weight and reduce material costs. If you do this, you must account for conductivity differences. You need a 1.6x cross-sectional area increase for aluminum to match copper's baseline conductivity. This physically alters the total insulated wire diameter. You must redesign your entire spooling space to accommodate the thicker aluminum strands.

Implementation Risks: Handling, Stripping, and Quality Control

The Stripping Bottleneck: We must address a major production floor reality. High-temperature enamels, like PAI, cannot be melted away with a standard soldering iron. You require verifiable removal methods for secure electrical terminations. Failure to remove the enamel causes weak, high-resistance joints.

• Chemical stripping: This method dissolves tough polymers effectively. However, it poses severe hazardous fume risks and creates complex environmental disposal challenges.

• Mechanical stripping: This technique requires precise rotary blades or specialized fiberglass wheels. The major risk here is nicking the underlying conductor, which compromises mechanical strength.

• High-heat carbonization: This uses extreme temperatures (often via specialized torches) to burn off the coating entirely. You must meticulously remove the resulting carbon residue afterward to ensure a clean solder joint.

Winding Tension and Abrasion: Dielectric failure frequently occurs due to aggressive winding speeds. Automated machines pull wire at high velocities, creating intense friction against metal guides. This friction tears the micro-layers. We strongly recommend specifying enamels manufactured with integrated surface lubricants. A microscopic layer of paraffin lowers the coefficient of friction. This protects the wire during high-speed automated spooling, preventing invisible tears. If you need guidance on optimizing your winding lines, please contact us.

Conclusion

The insulation on enameled wire is a precise chemical asset, not a generic covering. Treating it as standard rubber will lead to immediate catastrophic failures in your electromagnetic designs. To ensure lasting performance, procurement and engineering teams must align their wire selection across multiple disciplines.

First, evaluate the specific thermal and chemical environment your product will endure. Second, carefully match the insulation thickness standard to your available slot space and target voltage. Finally, consult your production floor. Your factory's winding capabilities and termination stripping methods heavily influence which polymer chemistry will succeed in production. Always prioritize a holistic approach over just looking at temperature charts.

FAQ

Q: Is enameled wire safe to touch when electrified?

A: No, it is not safe to touch. While the enamel acts as an insulator, it is microscopically thin. It is not rated for human safety or touch-protection against line voltages. Manufacturers design this film strictly for turn-to-turn internal component insulation within controlled casings.

Q: How can I tell if a wire has an enamel coating?

A: Look closely at the visual cues. The bright copper color you see is usually transparent enamel tinting. It is highly reflective. If you test it with a standard multimeter, it will show infinite resistance. You will not get a conductivity reading until you aggressively scrape the ends bare.

Q: Does the enamel degrade over time?

A: Yes, thermal aging degrades the insulation. Operating continuously above the rated temperature index accelerates this decay. The intense heat causes the flexible polymer to lose its chemical bonds. It eventually becomes dry and brittle, flaking off and leading directly to an internal short circuit.
