Can You Use Enameled Copper Wire to Make an Electromagnet​

Views: 0     Author: Site Editor     Publish Time: 2026-06-19      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

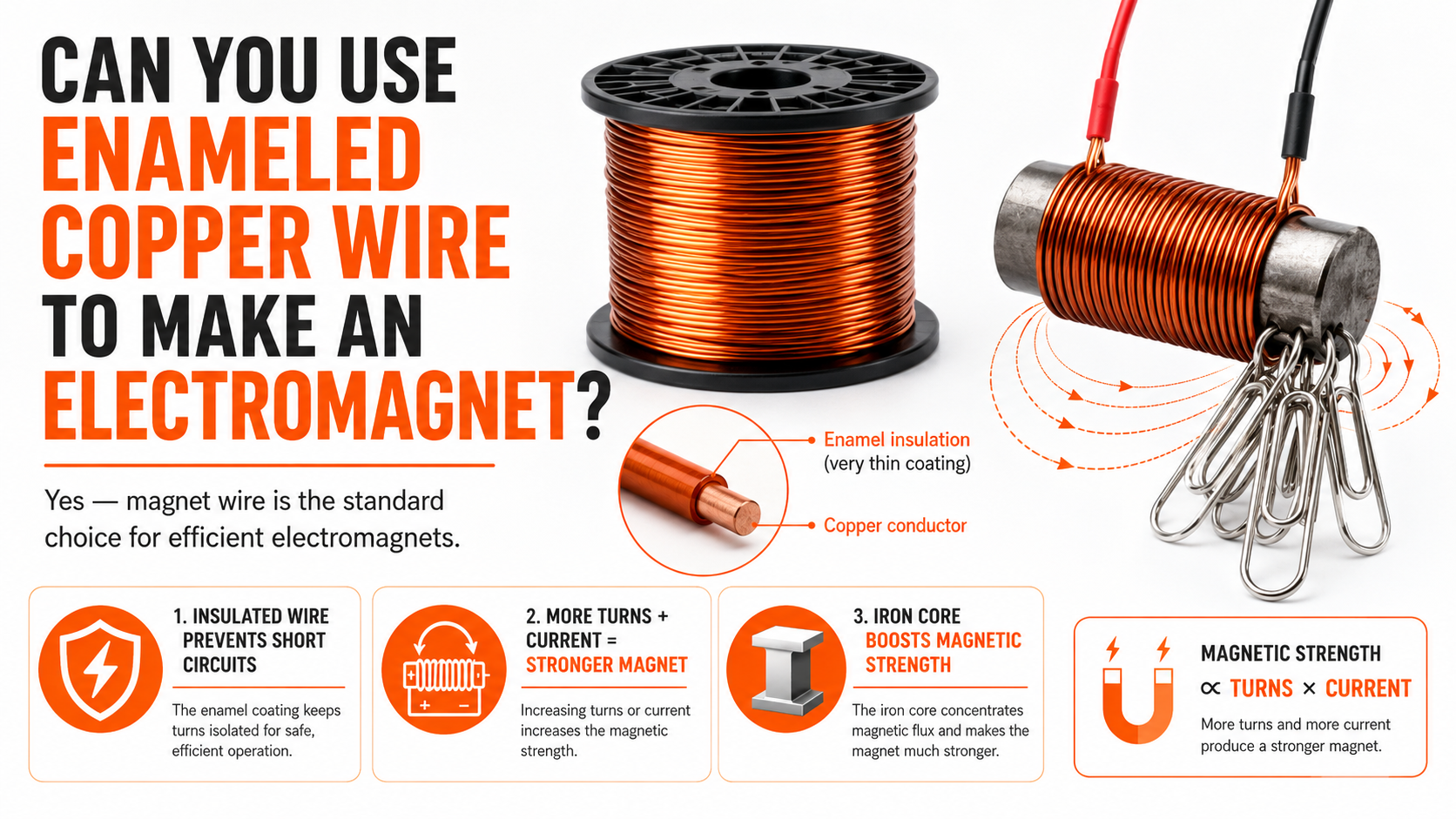

Yes, enameled copper wire—commonly known as magnet wire—is not just an option. It is the definitive engineering standard for building electromagnets. Building an efficient electromagnet requires more than just wrapping wire around a core. You must balance electrical resistance, packing density, and thermal limits. Failing to optimize these factors often leads to dangerous overheating or sudden power supply failures.

This article provides a complete technical evaluation framework to help you succeed. We will guide you through selecting the correct wire specifications for your specific application. You will learn the principles of optimizing magnetic strength efficiently. Furthermore, we will show you how to avoid common short-circuiting pitfalls during your prototyping and assembly phases. Whether you are winding a micro-coil or an industrial actuator, choosing the right wire is your most critical step.

Key Takeaways

  • Insulation is mandatory: Enameled wire utilizes a micro-thin polymer coating that prevents adjacent coils from short-circuiting, forcing current into the magnetic-field-generating spiral path.

  • Gauge dictates performance: Using wire that is too thick for a given space and voltage will cause a "dead short" and trip power supplies, while wire that is too thin limits current flow.

  • Copper is the optimal material: While silver is slightly more conductive, copper offers the definitive balance of mechanical flexibility, cost-efficiency, and minimal volume.

  • Ampere-turns rule: Magnetic strength is scaled by increasing the number of wraps (turns) and the current, combined with a highly permeable ferromagnetic core.

Why Enameled Wire is the Required Standard (Not Bare or Silver Wire)

The Bare Wire Failure (Short Circuiting)

Many beginners attempt to build electromagnets using uninsulated bare wire wrapped around a metal core. This approach immediately fails. Electricity always seeks the path of least resistance. When you wrap bare wire tightly around a conductive metal core, the current will simply bypass the spiral loops. It travels directly through the core or jumps across adjacent touching wires. This phenomenon causes a dead short. You will yield zero magnetic field and risk dangerous overheating. You must force the current to travel in a continuous spiral to generate a magnetic flux.

The Role of the Enamel Coating

The term "enamel" can be misleading. Modern magnet wire does not use glass-like enamel. Instead, manufacturers apply a high-grade polymer film, such as polyurethane, polyester, or polyimide. This coating serves a singular, critical purpose. It electrically isolates each wrap from the others while adding almost zero bulk. This extreme thinness allows for maximum packing density. You can fit the highest possible number of turns into the smallest physical space. High packing density is the secret to building compact, powerful electromagnets.

Myth-Busting: Copper vs. Silver

A common misconception suggests that silver wire creates a stronger magnet because it is more conductive. It is true that silver boasts roughly 5% higher conductivity than copper. However, this minor electrical advantage does not justify the massive cost multiplier. Silver also features lower mechanical strength, making it prone to stretching or breaking under tension during the winding process. Outside of highly specialized cryogenic equipment or niche RF applications, silver is unviable. Copper remains the superior engineering choice, offering an unbeatable balance of conductivity, mechanical flexibility, and minimal volume.

How to Evaluate and Select the Right Enameled Wire Specifications

Selecting the Right Wire Gauge (AWG)

Wire thickness is measured in American Wire Gauge (AWG). Choosing the correct gauge dictates the electrical resistance of your coil. This choice directly impacts how much current your electromagnet will draw.

  • Micro-applications (e.g., 28–32 AWG): These hair-thin wires are essential for small, low-voltage devices like tattoo machines, relays, or micro-motors. Because the wire is exceptionally thin, it provides enough electrical resistance to prevent small power supplies from overloading.

  • Mid-range to Heavy loads (e.g., 20–23 AWG): Thicker wire works best for larger industrial coils or standard 12V–24V laboratory electromagnets. You use these gauges when physical space allows for much longer wire runs, which naturally builds up the required resistance.

Thermal Classification (Temperature Limits)

High-current electromagnets generate significant heat due to electrical resistance. You must select an appropriate thermal class to prevent the polymer film from melting down. Industry standards classify wire based on the maximum temperature it can handle continuously.

Thermal Class

Temperature Limit

Typical Polymer Material

Best Application

Class 105 / 130

105°C - 130°C

Polyurethane

Student projects, low-duty cycle relays.

Class 155

155°C

Polyester

Standard industrial motors, 12V-24V electromagnets.

Class 200 / 220+

200°C - 250°C

Polyamide-imide / Polyimide

Heavy-duty lifting magnets, continuous high-temp coils.

Cross-Sectional Shape

Most commercial magnet wire is round. Small gauges almost exclusively use a round cross-section because it is easy to manufacture and wind. However, high-power industrial electromagnets often utilize square or rectangular wire. Flat wire shapes eliminate the microscopic air gaps that naturally occur when stacking round cylinders. This geometry significantly improves packing density and thermal conductivity across the coil.

Prototyping and Assembly: Implementation Considerations

Handling Cautions for the Insulation

Polymer coatings are incredibly thin, often measuring just a few micrometers. You must exercise extreme caution during assembly. Advise your team against routing the wire over sharp edges. Never use abrasive tools to guide the wire during winding. A single microscopic scratch in the ultra-thin enamel creates a short-circuit fault line. If two scratched sections touch, you lose an entire layer of magnetic turns, severely degrading performance.

Terminating the Connections

Because the insulation isolates electricity, the wire will not conduct at its ends naturally. Many beginners build a perfect coil but fail to get power into it. You must expose the bare copper at the terminal ends before soldering or connecting to a power source.

  1. Mechanical Scraping: Gently scrape the tips using a utility knife until you see shiny bare copper.

  2. Sanding: Fold a piece of fine-grit sandpaper over the wire tip and pull it through several times.

  3. Chemical Stripping or Heat: Some low-temp polyurethane coatings (Class 105) act as "solderable enamel" and will melt away when touched by a hot soldering iron. Higher temp classes require chemical strippers or manual scraping.

Core Selection

Wrapping wire around an empty plastic tube creates an "air core" electromagnet. Air cores produce exceptionally weak magnetic results because air is highly resistant to magnetic flux. To build a strong device, you must introduce a ferromagnetic core. Materials like soft iron, steel, or ferrite rods easily accept and concentrate magnetic lines of force. A proper iron core will amplify the magnetic flux of your coil by thousands of times compared to an air core.

Engineering for Strength: The Ampere-Turns Framework

The Core Formula

To optimize an electromagnet, you must understand its driving mathematical principle. Magnetic field strength relies entirely on Ampere-turns. The formula is straightforward: Magnetic Strength is proportional to the Current (Amperes) multiplied by the Number of Turns (Wraps). If you wrap a core 100 times and push 2 Amps through it, you generate 200 Ampere-turns. You will get the exact same magnetic field if you wrap it 200 times and push 1 Amp through it.

Balancing Variables

Designing a powerful coil requires balancing these two variables. Increasing turns seems like the easiest way to boost power. However, adding more turns requires more wire. Longer wire adds electrical resistance to the circuit. According to Ohm's Law, as resistance goes up, current drops.

You cannot blindly add turns and expect endless power. You must calculate the total wire length resistance against your power supply's output capabilities. If you use thin wire and add too many turns, the resistance will choke the current so low that your Ampere-turns will actually decrease.

Voltage Scaling

How do you overcome the high resistance of a heavily wound, fine-gauge coil? You safely scale the input voltage up. Higher voltage pushes more current through high-resistance barriers. However, you must monitor heat generation. Increasing voltage increases overall wattage. You must ensure you do not breach the enamel's thermal breakdown threshold. Proper engineering dictates calculating the maximum steady-state temperature of your coil before finalizing your voltage supply.

Troubleshooting Common Electromagnet Failures

Even with careful planning, prototype coils can behave unpredictably. Use the following diagnostic criteria to solve the most frequent electromagnet failures.

Symptom: The Power Supply Alarms or Shuts Down

Diagnosis: Your circuit has a dead short. This is usually caused by using too thick of a wire (e.g., 18-20 AWG) for a very short length. Thick wire presents almost zero ohms of resistance. To a standard DC power supply, this looks like a critical short circuit, causing built-in protection relays to trip immediately.

Fix: Switch to a higher gauge (thinner) wire to increase natural resistance. Alternatively, you can add a high-wattage power resistor in series with your coil to limit the current draw to safe levels.

Symptom: The Coil Gets Dangerously Hot but Produces Weak Magnetism

Diagnosis: You likely have an internal short circuit. This occurs due to scratched enamel during the winding process. Electricity is skipping across the layers rather than traveling the full spiral path. Another possibility is operating the coil far beyond the wire's rated current-carrying capacity, resulting in severe resistive heating.

Fix: Discard the damaged coil. Rewind a new core using a tensioner tool to prevent scraping. Ensure your operating current stays within the safe limits for your specific AWG size.

Symptom: Zero Magnetic Pull Despite Current Flow

Diagnosis: If you measure voltage at the power supply but get zero magnetic pull, the current is not entering the coil. The ends of the wire were not properly stripped of their enamel before connection. Alternatively, you may have used a non-magnetic core material like aluminum or brass.

Fix: Disconnect the power. Thoroughly sand the terminal ends of the wire until shiny copper is visible. Reattach your leads. Verify your core is made of soft iron or steel by testing it with a permanent magnet.

Failure Symptom

Primary Cause

Immediate Action

Power supply clicks off/alarms

Dead short (wire too thick/short)

Use thinner wire or add series resistor.

Rapid overheating, weak pull

Internal short (scratched enamel)

Rewind carefully; check insulation integrity.

No magnetic pull at all

Unstripped ends / Non-magnetic core

Sand terminal ends; replace core with iron.

Conclusion

Successful electromagnet design hinges entirely on sourcing high-quality, defect-free material. You cannot substitute bare copper or expensive silver and expect reliable, scalable results. The polymer insulation dictates your coil's physical size, heat tolerance, and overall lifespan.

When starting your next project, specify your exact AWG based on your power limits. Always select an appropriate thermal class to match your expected heat generation. Finally, handle the material with immense care to preserve the insulation's integrity during the winding process. By balancing the Ampere-turns rule with proper wire selection, you will build highly efficient, powerful magnetic devices.

We encourage you to review our comprehensive catalog to find the exact specifications you need. Explore our technical data sheets and AWG selection charts for precise ordering. Obtain the best enameled wire for your engineering demands today. If you need custom sizing, bulk ordering, or technical advice for your assembly line, please contact us to speak with our specialists.

FAQ

Q: Can I use aluminum wire instead of enameled copper wire?

A: Yes, but it is highly inefficient for small electromagnets. Aluminum possesses lower electrical conductivity than copper. It requires a roughly 66% larger cross-section to match copper's current capacity. This results in a much bulkier coil that takes up unnecessary space.

Q: Do I need to remove the enamel coating from the entire wire?

A: Absolutely not. You must only strip the very ends of the wire where it connects to the power source. Removing enamel from the middle of the wire will cause a catastrophic short circuit, rendering your electromagnet useless.

Q: Why is my enameled wire electromagnet not lifting anything?

A: Assuming your power supply is active and the wire ends are properly stripped, the issue is likely a lack of Ampere-turns or the absence of a highly permeable ferromagnetic core. Ensure you are using a soft iron core and not a non-magnetic metal like aluminum or brass.
