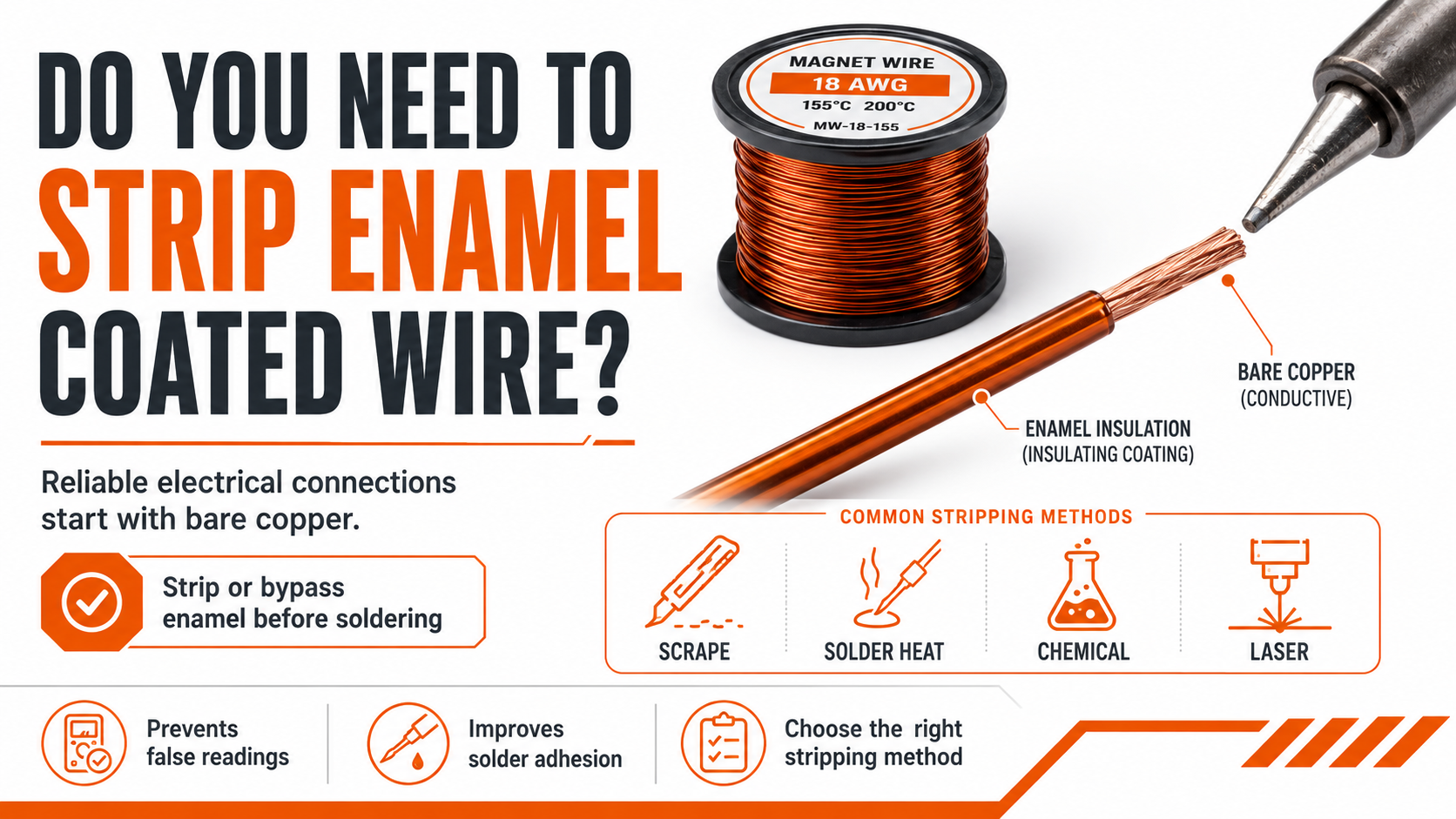

Working with magnet wire presents a frustrating but inevitable challenge for engineers and technicians. Its protective insulation is practically invisible to the naked eye. However, this thin layer is entirely non-conductive. This hidden barrier routinely leads to failed solder joints. It also causes wildly flawed resistance readings during diagnostics. Do you actually need to strip it? Yes. You must bypass or remove this enamel layer. Only then can you create a reliable, long-lasting electrical connection. How you achieve this removal depends entirely on two factors. You must identify the wire's thermal rating and evaluate your production scale.
This guide provides a comprehensive technical evaluation of modern stripping methods. We move from low-volume prototyping workarounds to high-precision industrial solutions. We analyze the risks, operational efficiency, and scalability of each approach. You will learn how to avoid damaging fine copper strands during the stripping process. You will also discover how to choose the right technique for your specific application. Whether you are fixing a small transformer or outfitting a large production line, matching the right technique to your wire ensures optimal performance.
Identification is Step One: Not all enameled wire requires manual stripping; "solderable" polyurethane coatings melt under high heat, while high-temperature enamels require physical or chemical removal.
Scale Dictates the Method: DIY fixes (scraping, sanding) fail at scale and risk damaging fine copper, whereas industrial applications rely on chemical baths, rotary collet strippers, or laser ablation.
Residue is the Enemy: Incomplete enamel removal creates carbonization or chemical residue, actively repelling solder and causing false resistance readings.
Myth Busted: Common household solvents like acetone or nail polish remover are chemically ineffective against industrial wire enamel.

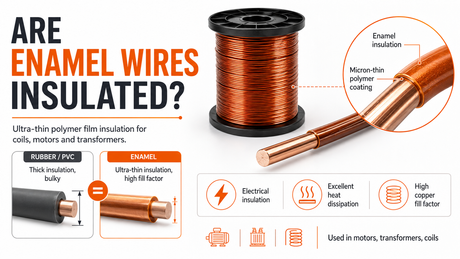

To understand why stripping is strictly required, we must first examine the fundamental role of the coating. Manufacturers use enameled wire to build tightly wound coils. You find these coils in electric motors, power transformers, and precision inductors. In these compact environments, raw copper strands would touch one another. This contact would create immediate, catastrophic short circuits. The enamel acts as a crucial insulating barrier.
Neglecting to remove this barrier at the termination points guarantees failure. Solder cannot adhere to polymer coatings. If you attempt to solder over intact enamel, you create a "cold" solder joint. The joint might look physically connected, but it possesses a total lack of conductivity. Furthermore, hidden enamel artificially inflates internal resistance readings. For example, a motor winding might naturally possess a 14 mOhm resistance. If the phase wires retain microscopic enamel residue, diagnostic tools might display a doubled reading of 28 mOhm. This false reading forces technicians to scrap perfectly functional hardware.
Not all coatings behave the same way under heat. You must differentiate between solderable and high-temperature enamels.
Solderable (Polyurethane-based): Manufacturers design these coatings to break down automatically. They melt when you expose them to extreme heat. You typically need temperatures ranging between 300°C and 400°C. You must also apply fresh flux. This type does not explicitly require manual pre-stripping. The heat does the work for you.
High-Temp/Heavy-Duty (Polyesterimide/Polyamide-imide): Industrial applications demand higher resilience. You see these coatings in high-stress environments like power motors and automotive alternators. They are completely impervious to standard soldering temperatures. You cannot melt them away. These heavy-duty coatings mandate active, deliberate stripping before any termination occurs.
When you handle small repairs or low-volume prototyping, manual techniques offer immediate results. However, they require careful execution to avoid permanent damage.
Mechanical stripping involves physically tearing the insulation away from the copper core.
Common Tools: Many technicians use Xacto blades for angled scraping. Others prefer ultra-fine 200-grit sandpaper. For slightly faster results, rotary tools excel. A Dremel paired with a dedicated pink aluminum oxide bit strips the wire efficiently.
Inherent Risks: Physical abrasion carries a high likelihood of altering the wire gauge. When you scrape the enamel, you inevitably shave the underlying copper. This reduction in diameter makes thin wires highly susceptible to metal fatigue. They will experience premature breakage under standard operational vibration.
Thermal methods leverage extreme heat to destroy the polymer structure of the enamel.
Solder Pots and High-Heat Irons: You dip the wire end directly into a molten solder pot. The intense heat decomposes the enamel instantly. The burnt polymer floats to the surface of the pot as black slag. You must use incredibly fast "in-and-out" handling. If you leave the wire submerged for too long, the hot tin will dissolve the copper wire completely.
Open Flame Methods: Technicians sometimes use a propane torch or a lighter. This aggressive approach proves useful for burning off thick coatings on heavy motor phase wires. After burning the enamel, you must follow up using a rotary wire brush to clean the surface.
Critical Risk Considerations: Open flames introduce severe hazards. They embrittle thin copper wire instantly. The heat alters the metallurgical structure, making the copper snap under minimal tension. Furthermore, burning leaves behind dense carbon deposits. This carbon actively blocks solder adhesion. If you do not sand the carbon away thoroughly, your subsequent soldering attempt will fail.

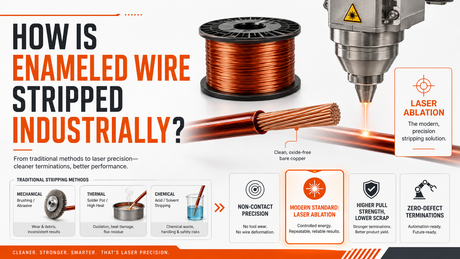

When manual methods become too slow, industrial operations turn to chemical strippers. This approach offers excellent scalability but demands strict safety protocols.
Chemical strippers do not actually dissolve the enamel layer. Instead, they rely on a powerful "swell and bulge" effect. Industrial chemical baths often utilize highly reactive ingredients. These include formic acid, phenol, or specialized acid blends. The chemicals penetrate the polymer structure. They break the chemical bond anchoring the enamel to the copper. This reaction causes the coating to blister and swell significantly. Once the enamel blisters, you can easily perform a mechanical wipe-off. Alternatively, you can use high-pressure water rinsing to blast the loose coating away.
Chemical stripping perfectly suits high-volume manufacturing environments. It is ideal for batch processing medium-to-large gauge wires. It also serves as the best method for treating complex, fully assembled stators. The liquid easily penetrates tight spaces where physical tools cannot reach. Most importantly, it completely eliminates the risk of mechanical damage. The copper core remains entirely unscratched and fully intact.
You cannot deploy chemical strippers casually. You must highlight the high hazardous nature of these chemicals within your facility. They emit toxic fumes and can cause severe skin burns upon contact.
Ventilation Requirements: You must install industrial-grade fume extraction systems over the chemical baths.
Neutralization Workflows: You must establish specific neutralization protocols. If a technician suffers exposure, they must perform an immediate ethanol washing. They must follow this closely with a sodium carbonate application to neutralize the acid.
Implementation Risk: Acid residue poses a massive threat to product longevity. If any acid residue remains on the wire after stripping, it will corrode the eventual solder joint over time. You must guarantee a pristine, chemically neutral surface before soldering.
Critical applications in aerospace, medical devices, and high-end electronics cannot tolerate mechanical scratches or chemical residue. These sectors evaluate and deploy high-end alternatives.
These devices use spinning blades housed inside motorized handheld or benchtop units. You insert the wire, and the spinning blades strip the coating with exact concentricity. They are excellent for repeatable, clean stripping of standard wire gauges. However, they carry high capital equipment costs. A basic model starts around $50. High-precision, programmable industrial units easily exceed $2000.
Ultrasonic stripping utilizes high-frequency sound waves. The machine applies these waves through a liquid medium or a specialized vibrating head. The intense vibration fractures the brittle enamel. It removes the coating completely without ever touching the inner core. It provides zero mechanical contact. Because it completely preserves the wire's integrity, it remains the absolute standard for ultra-fine wires used in medical devices and pacemakers.
Laser stripping represents the pinnacle of stripping technology. It utilizes targeted laser energy to vaporize the enamel layer in milliseconds. The laser wavelength is specifically chosen because the polymer absorbs it, but the copper reflects it. This offers precise depth control. It imparts zero thermal or physical stress on the underlying copper. Aerospace manufacturers enforce laser ablation as their standard to guarantee mission-critical reliability.
Selecting the correct method prevents costly rework. Applying a brute-force tool to a delicate wire guarantees failure. You must evaluate your specific scenario.
Wire Category | Typical Applications | Recommended Method | Methods to Strictly Avoid |
|---|---|---|---|
Ultra-Fine Wires | Headphone cables, medical sensors, miniature inductors | High-heat soldering (liquid flux), ultrasonic tools, specialized fiberglass pens | Mechanical scraping, open flames, harsh rotary tools |
Standard Electronics | PCB transformers, DIY magnet wire projects | Rotary collet strippers, solder pots, Dremel (pink bit) | High-strength industrial chemical baths (overkill) |
Heavy Gauge Wires | Power motor phase wires, automotive alternators | High-heat chemical baths, heavy mechanical abrasion (propane torch + wire wheel) | Standard soldering irons (insufficient thermal mass) |
When dealing with ultra-fine wires blended with synthetic fibers, you face a unique challenge. High-end headphone cables often weave Kevlar threads alongside the copper. You cannot use mechanical scraping here. Open flames will destroy the entire assembly. You should use high-heat soldering with liquid flux. Alternatively, you can use specialized fiberglass pens for extremely gentle abrasion.
Stripping the wire is only the first phase. You must mandate a strict post-strip cleaning protocol. Use a 99% isopropyl alcohol wipe to remove any lingering polymer dust or chemical residue. Following the wipe, perform a rigorous visual inspection. You must see bright, bare, shiny copper. If you see dark spots or dull patches, enamel remains. Never attempt any electrical termination until the copper passes this visual test.
Stripping enamel coated wire is a non-negotiable step for establishing reliable electrical connections. The insulation serves a vital purpose during winding, but it becomes a severe liability at the termination point. If you apply a brute-force method to the wrong wire type, you guarantee failure. The copper will break, or the joint will corrode.
We advise you to start your workflow logically. Always begin by testing a scrap piece of your wire with a high-temperature soldering iron. This simple test checks if the wire is auto-solderable. If the enamel melts cleanly, you save immense time and effort. If it resists the heat, you now know you must deploy physical or chemical means. Do this before investing in heavy mechanical tools or hazardous chemical strippers.
You must carefully evaluate your volume needs. If you are scaling up a production line, consult equipment specifications for rotary or laser stripping solutions. Upfront capital investments in precision tools pay massive dividends in long-term product reliability. Take the time to audit your current stripping process today. If you need to contact us for detailed specifications regarding advanced wire integration, our engineering team is ready to assist.
A: No. Cured industrial enamel and polyurethane coatings are highly resistant to standard household solvents like acetone. These chemicals lack the potency to break the strong polymer bonds. They will not dissolve or swell the insulation, rendering them completely ineffective for wire stripping.
A: An open flame introduces uncontrolled heat. This intense heat alters the metallurgy of the wire, annealing and embrittling thin copper. It makes the strands snap under minimal tension. Additionally, open flames leave a thick carbon residue that actively prevents solder from adhering properly.
A: Chemicals and normal scraping fail here. The most reliable method is using a soldering iron set to 400°C. You must apply a highly active flux. The extreme heat melts the enamel and the synthetic fibers simultaneously. Alternatively, you can gently brush the ends using a dedicated fiberglass scratch pen.
