Stripping enameled wire at an industrial scale is rarely about just removing insulation. It is about guaranteeing zero-defect solder joints. You must also maximize pull strength and eliminate bottleneck scrap rates. Production engineers know these high stakes well. Manufacturing demands have shifted dramatically over the past decade. Components like EV hairpin motors and 44 AWG medical devices now dictate extreme precision. Manual scraping or legacy processing is essentially obsolete for these delicate tasks. Traditional techniques often cause microscopic conductor damage and severe carbonization. We must adopt modern alternatives to meet strict quality controls. This guide evaluates leading industrial stripping methodologies. We will weigh traditional mechanical and thermal methods against advanced laser ablation. Our goal is to help production managers select the most reliable, compliant, and scalable system available today.
Traditional bottlenecks: Mechanical and thermal stripping often result in broken fine strands (30 AWG+) or heat-induced metallurgical damage, requiring up to 470°C processing temperatures.
The modern standard: Laser ablation offers a non-contact, selective removal process that vaporizes polymers without damaging the underlying copper or aluminum conductor.
Technology matching: Selecting the correct laser wavelength (CO2, UV, Fiber, Femtosecond) directly impacts weld quality, with data showing optimized wavelengths can increase weld pull strength by over 50% by eliminating carbon porosity.
Integration readiness: Automated systems now feature "on-the-fly" processing and integrated fume extraction, driving long-term ROI through zero-consumable operation.
Scaling production exposes the flaws in legacy wire preparation methods. Facilities often experience unexplainable quality drops during high-volume runs. These issues usually stem from outdated insulation removal techniques.
Mechanical friction methods apply severe physical stress. Rotary blades and fiberglass brushes frequently damage delicate materials. They cause high rates of broken strands on delicate gauges. This is especially true for sizes ranging from 30 AWG to 44 AWG. A single broken strand compromises the entire electrical assembly. You will see unpredictable resistance values and immediate QA failures.
Manual and thermal burning create serious chemical reactions. Incomplete combustion leaves carbonized residue on the enameled wire. This carbon layer directly causes weld porosity. It creates high electrical resistance across the joint. These microscopic air pockets weaken the termination. Field failures become almost guaranteed under vibration or thermal stress.
Many legacy facilities still rely on industrial solder pots. These systems carry massive compliance overhead. They generate heavy metal waste during daily operation. They also release toxic flux fumes onto the factory floor. Managing these hazards requires strict OSHA and EPA compliance protocols. The associated safety costs drain production budgets rapidly.

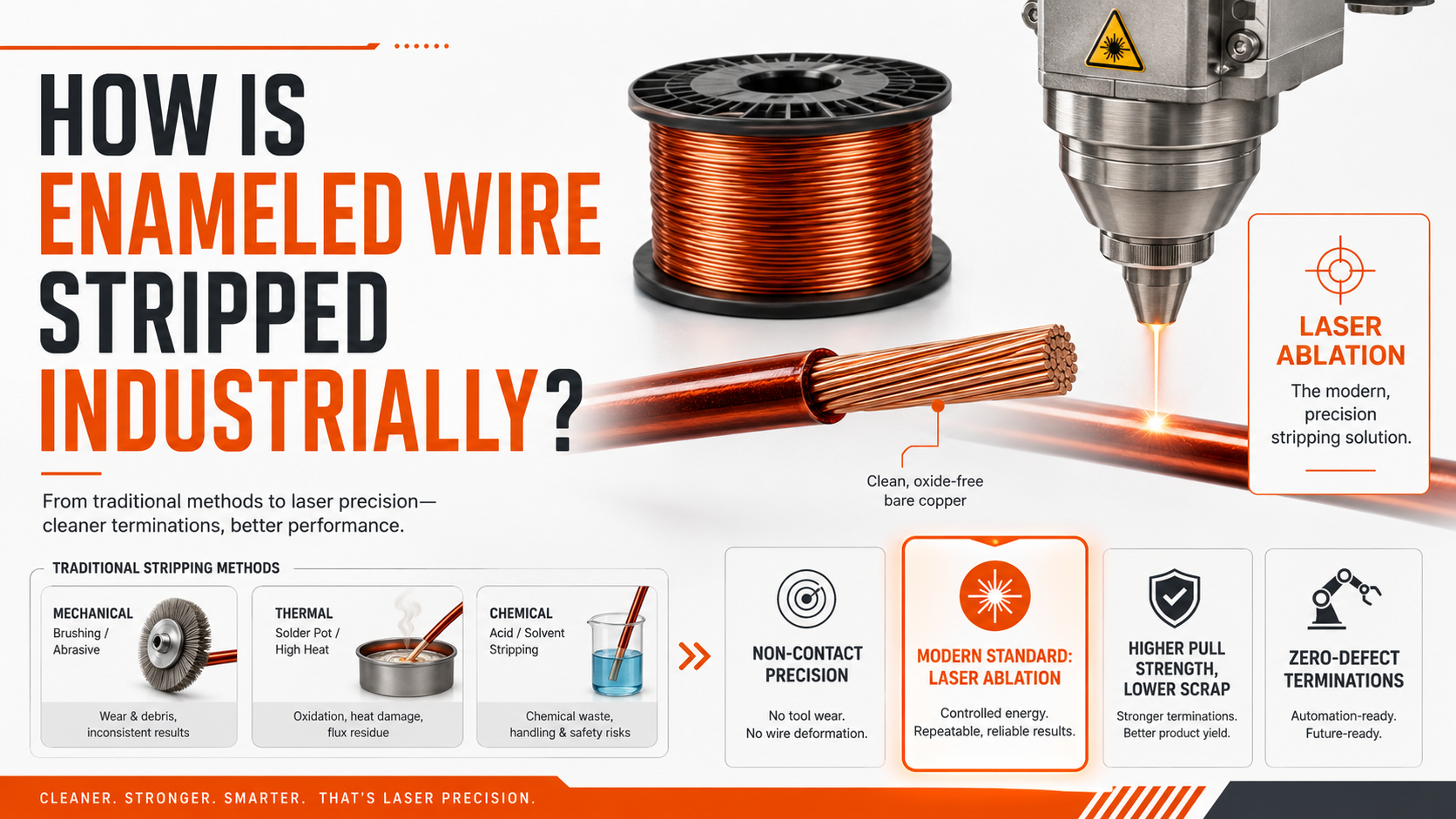

Engineers have historically relied on three primary removal categories. Each method presents unique physical limitations. We outline them below to clarify their production constraints.
High-Temperature Solder Pots (Thermal Process)
Mechanical Brushing and Blades
Chemical Solvents
This thermal process melts the enamel layer entirely. Operators submerge the coated conductor into molten solder. The enamel typically consists of tough polyurethanes or polyesters. Harder high-temperature enamels require extreme processing environments. You must maintain temperatures up to 470°C for 15 to 25 seconds. This extreme heat causes thermal creep up the wire shaft. Operators must use heat sinks. Otherwise, the intense heat destroys the natural flexibility of the conductor.
Mechanical methods utilize high-speed rotating blades or stiff wire brushes. They physically cut or friction-burn the insulation layer. Target thicknesses usually range from 0.08 mm to 1.6 mm. The consumable costs remain notoriously high due to rapid blade wear. Steel brushes create a very rough conductor surface. Fiberglass brushes rely on friction heat. This friction heat fluctuates wildly, producing inconsistent strip lengths.
Chemical removal utilizes acidic or caustic baths. These harsh liquids slowly dissolve the polymer chains. Cycle times are excessively slow for modern manufacturing. Operators must perform extensive post-process washing. You have to scrub away residual oxides before soldering. Facilities must also enforce strict hazardous chemical handling protocols.
Common Mistake: Never assume steel mechanical brushes provide a "cleaner" strip. While they remove thick enamel aggressively, they deeply score the underlying copper. This micro-scoring reduces the effective cross-sectional area of the conductor.
Modern manufacturing demands non-destructive material removal. Laser ablation serves as the ultimate precision standard. It replaces brute force with optimized light energy.
We must reframe how we view laser processing. It is not "burning" or "cutting." It is highly selective energy absorption. The system emits specific light waves. The polymer coating absorbs these light waves exclusively. The energy instantly tears the atomic bonds of the insulation. The material vaporizes in milliseconds. The highly reflective metal conductor repels the light wave entirely. It absorbs almost zero heat during the process.
The core differentiator is physical isolation. Zero physical force touches the enameled wire. Mechanical deformation becomes virtually impossible. You eliminate nicked conductors entirely. You never stretch or twist fine copper strands. This contactless nature guarantees repeatable, damage-free bare wire.
Laser technology grants unparalleled geometric control. Software directs the beam to perform complex stripping profiles. You can execute precise "window stripping" easily. This involves removing mid-span insulation segments. You expose the copper without cutting the wire itself. Such flexibility proves invaluable for continuous grounding applications.
Selecting the correct laser wavelength dictates your final termination quality. We must ground this evaluation in empirical outcomes. Different lasers interact differently with distinct polymers.
CO2 systems emit infrared light. They are best for standard plastic removal. They handle PVC and Teflon effortlessly. They suit thicker wire gauges well. They also offer a budget-conscious initial equipment setup. However, trade-offs exist. CO2 lasers can leave higher trace carbon residue on certain enamels. They do not vaporize high-temp polymers completely compared to shorter wavelengths. This residual carbon may slightly reduce tensile strength. Avoid them for highly sensitive EV motor applications.
Ultraviolet and femtosecond lasers operate differently. They are best for ultra-fine wires and aerospace components. Medical manufacturing relies heavily on them. They offer the distinct "Cold Ablation" advantage. Femtosecond pulses fire in 10⁻¹⁵ seconds. They remove material so rapidly that heat cannot transfer. The surrounding area remains perfectly cool. This results in a near-zero Heat Affected Zone (HAZ).
Composite systems combine multiple laser sources. They are best for demanding applications like EV Hairpin motor windings. Industry data demonstrates their immense value. Combining IR and Near-IR (NIR) lasers aggressively removes thick enamel. The secondary beam cleans the residual carbon completely. Studies show this achieves significantly higher weld pull strengths. You can achieve approximately 400+ N of pull strength. A single IR system only achieves around 260 N. Dual systems eliminate weld spatter completely.
Laser Type | Primary Wavelength | Best Application | Carbon Residue Level | Weld Pull Strength (Avg) |
|---|---|---|---|---|
CO2 (IR) | Infrared | Thick gauges, PVC/Teflon | Moderate to High | ~260 N |
UV / Femtosecond | Ultraviolet | Medical, ultra-fine wire | Extremely Low | Superior (Cold Ablation) |
Composite (IR + NIR) | Mixed | EV Hairpin motors | Near Zero | ~400+ N |
Transitioning to laser technology requires proper facility integration. You must coordinate software, safety, and exhaust hardware. The ecosystem matters just as much as the laser source.
Modern Human-Machine Interfaces (HMIs) transform production speed. Systems store repeatable SQL-based recipes. Operators select different wire gauges instantly. You do not need manual recalibration. Advanced units perform "on-the-fly" processing. They strip the insulation while the wire moves continuously. The material flows through the machine without stopping. This continuous motion maximizes daily throughput.
Fume extraction is never an optional add-on. It acts as a critical system component. The laser vaporizes polymers into dense smoke. You must evacuate this smoke immediately. Rapid extraction complies with respiratory safety standards. It also prevents debris from settling on optical lenses. Dirty lenses degrade laser focus. Proper exhaust ensures consistent beam delivery.
Industrial lasers operate inside light-tight safety housings. These are known as Class I Enclosures. The housing traps all scattered radiation. Operators remain perfectly safe on the factory floor. They do not require specialized safety glasses. They do not need cumbersome protective gear. The machine runs safely alongside other assembly tasks.
Scaling your facility requires looking beyond initial purchase prices. You must evaluate the long-term production advantages. Advanced stripping systems generate value through sustained operational efficiency.
Modern automated equipment shifts your production economics dramatically. We can isolate three distinct operational drivers:
Zero consumable costs: You stop purchasing replacement parts. You no longer buy rotary blades or fiberglass wheels. You eliminate solder bar and chemical flux purchases entirely.
Drastic reduction in scrap rates: Nicked conductors disappear. You eliminate costly rework caused by broken wire strands. First-pass yield metrics improve significantly.
Higher throughput: Automated batch processing accelerates production. Machine vision alignment corrects wire placement instantly. You process more units per hour than manual scraping allows.
We highly recommend starting with application testing. Do not guess how your specific insulation will react. Send coated wire samples directly to equipment manufacturers. Request proof-of-concept processing. Demand comprehensive pull-strength validation on the stripped samples. Reviewing real-world metallurgical data ensures you choose the correct wavelength.
Industrial wire preparation requires specialized approaches for modern applications. Manual scraping and extreme thermal dips cannot support today's precision requirements. They compromise structural integrity and cause unacceptable scrap rates. Laser ablation provides a non-contact, highly repeatable solution. It vaporizes insulation without harming the delicate conductor beneath.
Selecting the right equipment ensures your production line remains competitive. Evaluate your wire diameter, insulation type, and required throughput first. Match these variables to the correct laser wavelength. Dual-wavelength systems offer unmatched strength for heavy-duty EV applications. UV systems protect fragile medical wires from heat damage. If you need guidance on scaling your production line, feel free to contact us to discuss application testing. Adopting these advanced methodologies guarantees superior terminations and robust product reliability.
A: Yes. Laser systems easily handle flat profiles. They can be equipped with rotating optics. Some use multiple beam paths to strip 360 degrees around rectangular wires. This ensures uniform enamel removal on specialized shapes like EV hairpin stators.
A: No. Laser stripping relies entirely on wavelength reflectivity. The polymer insulation absorbs the specific light wave and vaporizes instantly. The underlying copper or aluminum reflects that exact wavelength. The metal acts as a natural, damage-proof barrier.
A: Lasers process standard enamel thicknesses of 0.08 mm to 1.6 mm highly efficiently. Advanced multi-pass lasers can handle much thicker jackets. However, cycle times may increase. For extremely heavy power cables, hybrid mechanical methods might process faster.
