How Many Turns per Inch for 26 Enameled Wire​

Calculating the exact turns per inch (TPI) for 26 AWG enameled wire presents a constant engineering challenge. It is never a simple fixed metric. Instead, the final number is heavily dictated by your specific insulation build and chosen winding methodology. Technical buyers and electrical engineers need precise baseline figures to source the correct wire. These calculations directly affect tight-tolerance coils, transformers, and highly efficient motor applications. A minor estimation error can lead to bulky components or unexpected electrical shorts. In this guide, you will learn the fundamental theoretical calculations required to begin your design phase. We will explore the critical real-world variables altering your actual manufacturing yield. You will also discover robust specification criteria for vendor selection. Theoretical TPI frequently differs from production reality due to wire tension and machine precision, making it crucial to master these operational nuances.

Key Takeaways

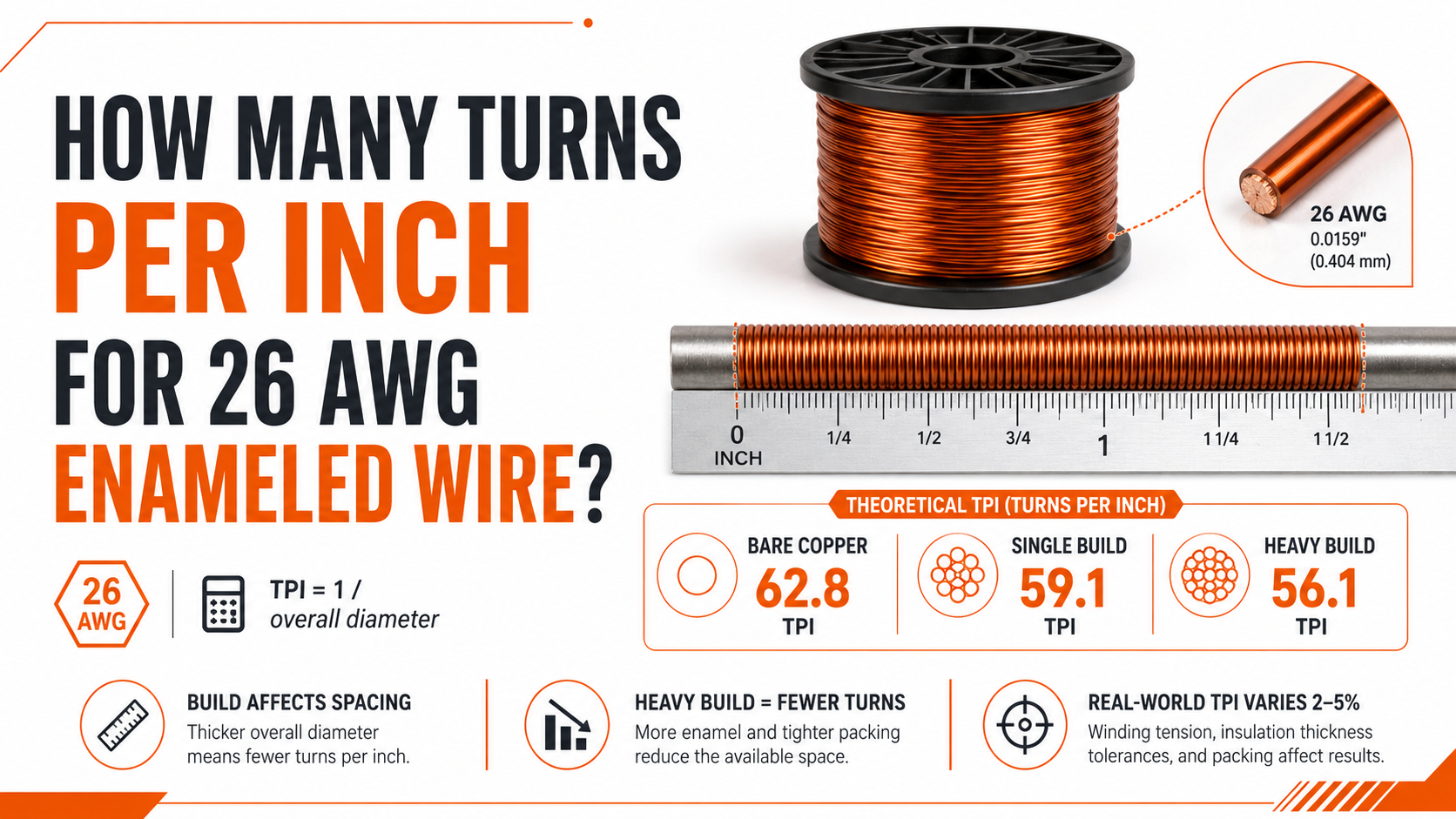

• Theoretical Baselines: 26 AWG bare wire yields ~62.8 turns per inch; with enamel coating, this drops to ~59.1 (Single Build) or ~56.1 (Heavy Build).

• The Insulation Trade-off: Selecting a Heavy Build decreases TPI but significantly increases dielectric strength and fault tolerance.

• Real-World Variance: Manufacturing variables like tension stretch, random winding vs. perfect-layer winding, and bobbin anomalies will reduce your actual usable TPI by 2–5%.

• Procurement Focus: Finalizing a purchase requires matching the TPI space constraints with the correct thermal class (e.g., 155°C vs. 200°C) and NEMA MW 1000/IEC compliance standards.

The Baseline Calculation: Single vs. Heavy Build Enameled Wire

To determine accurate turns per inch, engineers must establish the baseline geometry of the raw conductor. The standard nominal diameter of 26 AWG bare copper wire measures approximately 0.0159 inches (0.404 mm). Bare wire alone cannot function in tightly wound electromagnetic coils. It requires a dielectric insulating coating. This coating naturally adds microscopic volume to the overall diameter.

You can find the theoretical Turns Per Inch by using a straightforward formula: TPI = 1 / Overall Diameter (in inches). By dividing one inch by the precise wire diameter, you calculate exactly how many turns fit side-by-side in a perfect geometric line. However, the exact diameter fluctuates based on the grade of insulation applied.

Single Build (Grade 1) Specs

When manufacturers apply a Single Build insulation layer, the nominal overall diameter of the conductor increases. A typical 26 AWG Single Build wire measures roughly 0.0169 inches. By applying our formula, this measurement provides a theoretical TPI of approximately 59 turns per inch.

This specification serves a very specific primary use case. Engineers select Single Build for applications prioritizing a maximum copper fill factor. When you work inside highly constrained spatial environments, such as miniature sensors or compact inductors, every fraction of a millimeter matters. You sacrifice a degree of voltage protection to fit more active copper into the available winding window.

Heavy Build (Grade 2) Specs

Heavy Build insulation adds a substantially thicker enamel layer over the bare copper. The nominal overall diameter of 26 AWG Heavy Build wire expands to roughly 0.0178 inches. Because of this larger physical footprint, the theoretical TPI drops to approximately 56 turns per inch.

The primary use case for this specification involves environments requiring robust dielectric protection. You utilize Heavy Build wire to guard against turn-to-turn shorting under mechanical stress. It offers superior scrape resistance and handles sudden voltage spikes far better than a Single Build counterpart.

Operational Variables That Alter Actual Winding Yield

Theoretical math on paper rarely matches actual manufacturing reality on the factory floor. Bridging this specific gap builds the foundation for successful component design. You must account for dynamic mechanical factors introduced during the physical winding process. Failure to adjust for these variables often leads to oversized coils.

Wire Stretch and Tension

Automated winding machines pull wire tightly around bobbins. Excessive winding tension physically elongates the copper core. This stretching action subtly reduces the actual wire diameter. While a thinner wire might seem advantageous for fitting more turns, it carries severe electrical penalties.

Stretching increases the inherent electrical resistance of the copper path. It directly alters the final impedance of your electronic component. Furthermore, over-tensioning compromises the integrity of the enamel coating, creating microscopic fissures. Precision tension control prevents these hidden defects from ruining a production run.

Layering Anomalies

Basic engineering calculations often assume an orthocyclic winding pattern. In a perfect layer model, each subsequent turn sits tightly against the previous one. The next layer neatly nests into the grooves formed by the layer below.

However, many high-speed production lines rely on random winding techniques. Random winding inherently causes individual wires to cross over each other indiscriminately. This messy crossover drastically reduces spatial efficiency. In practical applications, a random winding pattern reduces your available space by 15 to 20 percent compared to orthocyclic calculations.

Insulation Swell / Tolerance

Enamel coatings carry a defined tolerance range rather than a single absolute value. They possess minimum and maximum dimensional limits dictated strictly by industry standards. Therefore, your TPI can fluctuate slightly from batch to batch. It depends heavily on the manufacturer's specific coating application process.

Minor insulation swell cascades quickly across hundreds of sequential turns. A variance of just 0.0002 inches on one wire multiplies significantly across a 500-turn coil. This unexpected volume forces the final coil outside its intended dimensional envelope, preventing successful housing assembly.

• Common Mistake: Relying strictly on nominal diameters without padding the bobbin design for maximum NEMA tolerance limits.

• Best Practice: Always design your winding window assuming the wire diameter sits at the absolute maximum NEMA specification.

Insulation Type & Thermal Class: Evaluation Dimensions

Selecting the correct enamel formulation requires looking beyond dimensional fit. You must actively evaluate operational outcomes to ensure long-term reliability. Different resin chemistries behave uniquely under thermal and environmental stress.

Solderability vs. Heat Resistance

Different applications demand drastically specific thermal characteristics. Polyurethane enamel typically carries a Class 155 rating. It offers the tremendous manufacturing advantage of being easily solderable at 380°C. Operators do not need to mechanically strip the ends before terminating the coil.

Conversely, Polyamide-imide or Polyester blend coatings typically rate at Class 200 or higher. They withstand aggressive operating temperatures inside enclosed motor housings. However, they demand mechanical or chemical stripping prior to soldering. You must factor this extra processing step into your production workflow.

Dielectric Requirements

Your mandated voltage rating strongly influences whether you can prioritize a higher TPI. High-voltage transformers cannot safely afford the thinner insulation profile of a Single Build wire. Designers must reluctantly accept the lower TPI of a Heavy Build variant to prevent sudden electrical breakdown.

Pinhole shorts occur when voltage breaches weak insulation. Choosing a thicker enamel serves as a necessary safety compromise. You trade physical compactness for long-term operational stability.

Environmental Resilience

The chemical makeup of the enamel resin determines its overall environmental resilience. Your wire must survive secondary manufacturing processes unharmed. Operators frequently use potting compounds, varnishes, and industrial solvents to seal finished coils.

Weak or incompatible insulation degrades upon contact with aggressive solvents. Review your entire operational environment and encapsulation strategy before specifying the chemical composition of your wire coating.

Evaluating 26 AWG Specifications by Application

Let us frame the material selection logic around highly specific end-use criteria. Every specific industry prioritizes different mechanical traits and electrical safeguards.

1. RF Coils & Ham Radio: High-frequency applications require an exceptionally high-Q factor. You need an exact, predictable TPI to ensure precise inductance matching across the circuit. Designers building single-layer air coils carefully consider both enamel thickness and chemical type to minimize parasitic capacitance between adjacent turns.

2. Transformers & Inductors: Continuous power delivery focuses heavily on maximizing winding window utilization. You want the highest possible copper fill factor to maintain efficiency. However, Heavy Build insulation is almost always necessary here. The thicker coating definitively prevents microscopic pinhole shorts from developing during aggressive, continuous thermal cycling.

3. Solenoids & Sensors: These electromechanical devices face highly varying thermal loads. Continuous duty cycles generate far more trapped heat than intermittent duty cycles. Because 26 AWG copper has a resistance of roughly 40.8 ohms per 1000 feet, thermal management remains critical. Tightly packed bobbins trap this resistive heat quickly. Engineers must carefully select robust thermal classes to avoid catastrophic coil meltdown.

Procurement & Shortlisting: Specifying Magnet Wire Vendors

Sourcing reliable raw materials requires a strict vendor evaluation process. Buyers should confidently demand specific performance criteria from manufacturers. This guarantees production stability and reduces costly scrap rates.

Compliance & Certification

Always request comprehensive, updated specification sheets. Verify that the incoming wire strictly complies with NEMA MW 1000 or IEC 60317 international standards. These authoritative documents confirm that all diameter tolerances perfectly align with your engineering models. Utilizing unverified wire inevitably leads to inconsistent winding results and failed quality checks.

Lot Traceability & Testing

Look for vendors who actively provide detailed baseline testing data with their shipments. Critical quality metrics include continuity checks, dielectric breakdown voltage tests, and elongation percentages. Comprehensive lot traceability ensures you can quickly isolate and rectify issues if a specific spool underperforms on the line.

Spool Sizing & Logistics

Physical spool size directly impacts your automated winding machinery. An incorrectly sized or overly heavy spool causes immediate tangling or unwanted breakage under high despooling tension. Discuss precise weight limits, flange dimensions, and mechanical compatibility with your supplier well before placing a large order.

Next Steps

Never commit your budget to bulk volume procurement immediately. Order small engineering samples first. Run several prototype winding batches to accurately test the true TPI and verify real-world electrical performance. Only after successful prototyping should you scale up. If you require technical assistance selecting the ideal specification, please contact us to discuss the unique spatial limits of your application.

Conclusion

Calculating turns per inch for 26 enameled wire involves mastering a three-part engineering equation. You must carefully account for the baseline AWG geometry, the applied insulation build, and your actual factory winding execution. Sacrificing dielectric strength to achieve a higher TPI using a Single Build coating remains a calculated risk. You must ensure this risk perfectly aligns with your final application requirements. Moving forward, technical buyers should meticulously consult standard NEMA data charts from their shortlisted vendors. Always align your theoretical models with exact manufacturing tolerances. Request physical testing samples to conclusively validate your spatial assumptions before entering full-scale production.

FAQ

Q: What is the overall diameter of 26 AWG Heavy Build enameled wire?

A: The nominal overall diameter is approximately 0.0178 inches (0.452 mm). However, precise physical dimensions can vary slightly. They depend heavily on the specific NEMA standard limits and the individual manufacturer's coating application process.

Q: How many layers of 26 AWG wire fit in a one-inch bobbin depth?

A: This depends directly on your specific TPI multiplied by the available bobbin depth. You must also proactively subtract the thickness of any required layer insulation tapes and the physical bobbin wall thickness to determine the true usable winding space.

Q: Does the color of the enameled wire affect its thickness or TPI?

A: No. Color dyes generally do not impact the final build dimensions. Standard colored enamels, such as amber, red, or green, maintain the exact same mechanical specifications. They do not alter the final turns per inch geometry.

Q: What is the maximum current capacity (ampacity) for 26 AWG enameled wire?

A: A conservative baseline is typically around 0.36 Amps for standard power transmission. However, this ampacity calculation is highly dependent on the acceptable temperature rise within your specific tightly wound coil and the wire's selected thermal class.
