Specifying the correct insulation thickness on magnet wire presents a critical engineering balancing act. You must maximize the slot fill factor. You must also ensure sufficient dielectric breakdown strength. Over-specifying insulation thickness wastes valuable physical space inside the core. Space constraints directly reduce overall motor or transformer efficiency. Conversely, under-specifying the coating risks dangerous turn-to-turn shorts. This virtually guarantees premature equipment failure under thermal load. Procurement teams often struggle to navigate these opposing constraints. They face confusing specifications during critical maintenance cycles.
This article provides a comprehensive technical framework for evaluating coating dimensions. We will explore standardized build grades across different regions. We will outline practical methods to avoid common reverse-engineering measurement errors. Finally, you will learn how to properly vet manufacturer quality control standards. This ensures you maintain strict batch-to-batch consistency for your critical electrical applications.

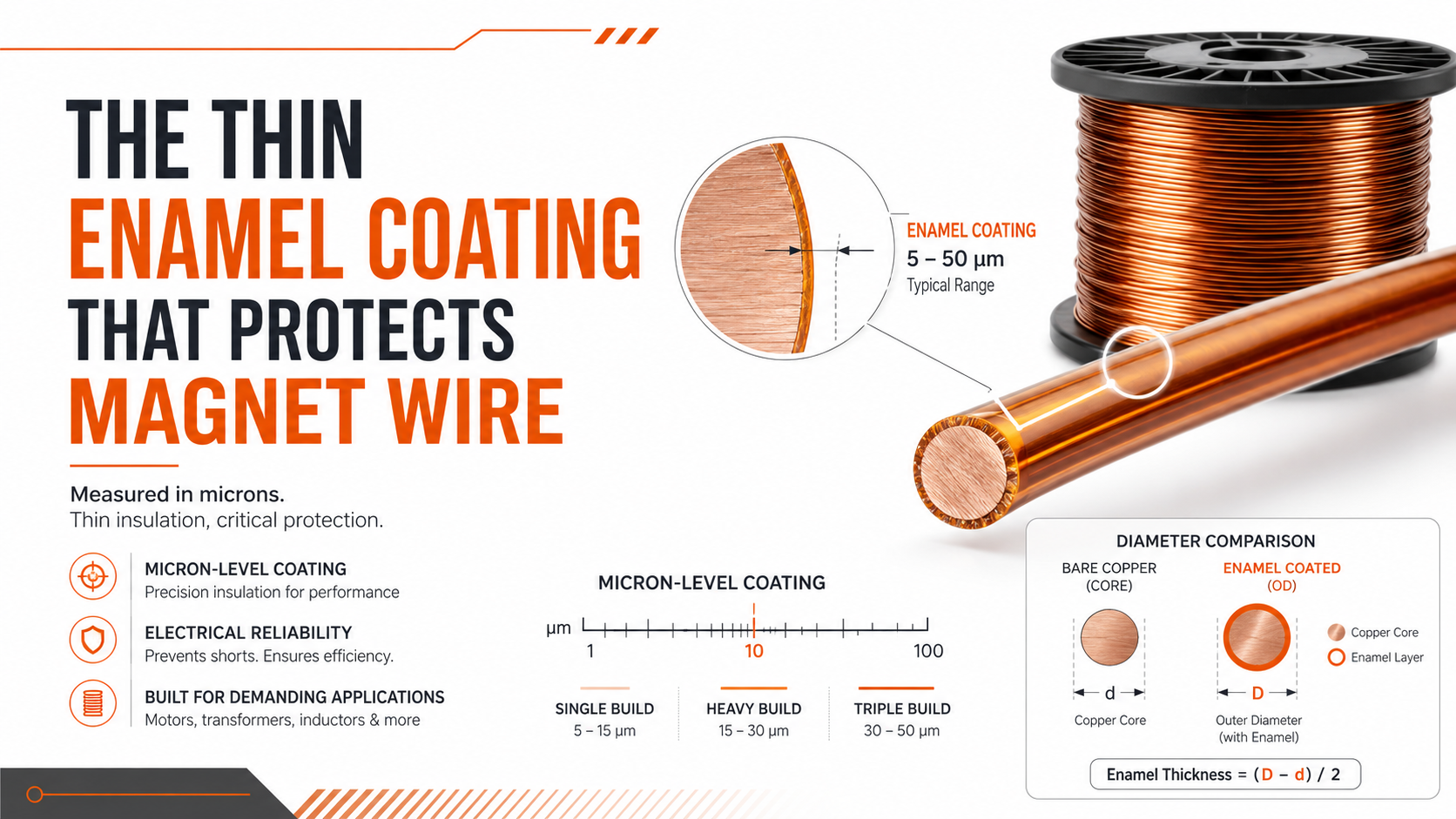

Enamel thickness is categorized by standardized "Build" grades (NEMA: Single, Heavy, Triple) or IEC Grades (Grade 1, 2, 3), typically ranging from a few micrometers to roughly 100 micrometers (0.004 inches) depending on the bare wire AWG.
Measuring the outer diameter (OD) of enameled wire with standard calipers often leads to specifying the wrong bare wire gauge; chemical stripping or weight-equivalence testing is required for accurate reverse engineering.
Premium enameled wire is manufactured using a "multi-pass" thin-coating process rather than a single thick application, drastically improving mechanical flexibility and concentricity.
Specialized applications, such as EV hairpin motors using PEEK flat wire, require advanced inline optical measurement (like Near-Infrared interference) to verify coating uniformity.
Mapping standardized thickness classifications to your project requirements represents the crucial first step in procurement. Engineers evaluate these dimensions through specific regional frameworks. North America relies heavily on NEMA standards. Europe and Asia predominantly follow IEC standard classifications. Understanding how these systems interact prevents costly specification errors.
NEMA dimensional standards classify thickness using descriptive terms. These include Single, Heavy, Triple, and Quadruple builds. IEC standardizes these exact concepts numerically as Grade 1, Grade 2, and Grade 3. Grade 1 corresponds closely to a NEMA Single build. Grade 2 aligns with a NEMA Heavy build. Grade 3 mirrors the NEMA Triple build. These classifications dictate the radial thickness of the polymer film applied over the bare copper.
Enamel thickness is never a fixed absolute number. You cannot request a universal 50-micrometer coating across all products. Instead, the polymer thickness scales proportionately with the bare conductor diameter. We measure this conductor diameter using the American Wire Gauge (AWG) system or metric equivalents. A thick 10 AWG wire requires a significantly thicker physical coating to achieve a Heavy build rating. A hair-thin 40 AWG wire requires only a microscopic layer to achieve that exact same Heavy build rating. The ratio remains consistent, even as absolute dimensions change.
Selecting the correct grade involves balancing electrical isolation against physical space limitations. We evaluate these trade-offs through three primary categories:
Single Build (Grade 1): This classification is ideal for tightly constrained spaces. Slot fill becomes your primary performance metric here. Engineers specify Single builds for high-density sensors, small relays, and precision instruments. You sacrifice some dielectric safety margin to achieve maximum copper density.
Heavy Build (Grade 2): This represents the industry standard for general motors and transformers. It offers a perfectly balanced dielectric safety margin. It provides enough insulation to prevent shorts without aggressively compromising winding space.
Triple/Quadruple Build: You must reserve these builds for extreme duty cycles. They handle environments prone to severe high voltage spikes. Inverter-driven motors heavily rely on these grades. The thick insulation severely reduces slot fill but provides unmatched electrical protection.
NEMA Standard | IEC Standard | Relative Thickness | Primary Application Focus |
|---|---|---|---|
Single Build | Grade 1 | Baseline (Thinnest) | Sensors, small relays, tight space constraints. |
Heavy Build | Grade 2 | Approx. 2x Single | Standard motors, commercial transformers, general use. |
Triple Build | Grade 3 | Approx. 3x Single | Inverter-driven motors, high-voltage spike environments. |
Quadruple Build | N/A | Extreme Thickness | Severe duty cycles, specialized industrial equipment. |
Preventing procurement mistakes during repair or reverse-engineering requires strict measurement protocols. Many maintenance teams fall into a predictable measurement trap. They assume the polymer layer is mathematically negligible. This assumption leads to catastrophic failures.
Address the common pitfall immediately. Maintenance engineers often measure burnt-out coils using standard digital calipers. They place the jaws over the charred enameled wire. They read the outer diameter (OD). They then order bare copper matching that exact OD dimension. This is a severe mistake. The enamel adds tangible thickness to the wire. This is especially true for Heavy builds. Measuring the coated OD routinely leads to ordering bare copper one or two AWG sizes too small. Using a smaller wire increases the correct coil resistance. The new coil will run significantly hotter. It will likely burn out within hours of installation.
You must strip the insulation before taking any caliper measurements. We recommend two fail-safe methods to identify the true bare copper dimensions.
Chemical Stripping: Apply a commercial chemical stripper directly to the wire end. Wait for the polymer to blister. Gently wipe the residue away using a soft cloth. You may also use fine abrasives like very high-grit sandpaper. However, you must avoid aggressive scraping. Scraping removes copper material and falsifies your final measurement. Measure the clean bare copper using a calibrated micrometer.
The Weight-Equivalence Method: This method works perfectly for extremely fine gauges where stripping damages the fragile copper. Cut a precise, measurable length of the unknown wire. Weigh this sample using a high-precision analytical scale. Compare this exact weight against standard AWG weight charts per meter. The polymer insulation weighs significantly less than copper. This weight comparison cleanly reveals the true bare AWG size.
Always verify your findings using both methods if the application requires high precision. Do not rely solely on visual OD estimations.
Aligning physical specifications with functional outcomes requires understanding material behaviors. You must ensure UL compliance while meeting mechanical demands. Thickness alone does not guarantee superior performance. You must consider the specific polymer chemistry.
Thicker polymer films directly correlate with higher breakdown voltages. A Heavy build withstands significantly higher voltage spikes than a Single build. However, this relationship depends heavily on the specific polymer type. A Polyimide coating provides a distinct dielectric profile compared to a Polyurethane coating. You cannot swap polymers without recalculating your dielectric margins. The thickness dictates the isolation gap. The chemistry dictates the isolation strength. We evaluate both factors simultaneously.
Manufacturing environments subject wires to immense physical stress. We detail durability through standardized UL scrape abrasion tests. Testing machines drag a weighted steel needle repeatedly across the wire surface. They count the strokes required to expose bare copper. A thicker coating generally withstands automated winding stresses better. High-speed winding machines pull wires tightly through mechanical guides. Single builds often fail these abrasion tests under high tension. You must specify Heavy builds for automated winding lines. Ensure the manufacturer properly cures the polymer to maximize this abrasion resistance.
Specifying excessively thick enamel creates unintended consequences. Thick coatings can sometimes increase polymer brittleness. This occurs frequently if the manufacturer poorly controls the curing oven temperatures. We measure this vulnerability through elongation and heat shock testing. Machines stretch the wire rapidly. They then bend it tightly around metal core pins. They bake the bent sample in an oven. Poorly cured thick builds develop micro-cracking during this process. Micro-cracks destroy your dielectric isolation. Always review heat shock data before ordering Quadruple builds.
Establishing criteria for auditing supplier capabilities protects your supply chain. You must ensure strict batch-to-batch consistency. Top-tier manufacturers utilize sophisticated process controls. We look for three specific manufacturing capabilities during any supplier audit.
Tier-one manufacturers never apply the enamel in one massive, single pass. Applying a single thick layer traps solvents. It causes uneven curing. Instead, they utilize a "multi-pass" process. They apply one to four distinct, ultra-thin layers. They cure each layer individually before applying the next. This process drastically improves mechanical flexibility. It ensures perfect concentricity around the copper core. Often, manufacturers combine different polymers. They might apply an inner base coat for electrical insulation. They then apply a polyamide-imide topcoat for mechanical toughness. This composite approach yields superior overall performance.
Continuous tension inconsistencies ruin wire quality. During the enameling process, machines pull the copper through dies and ovens. Excessive pulling stretches the soft copper. Stretching permanently alters the final AWG dimension. It also changes the relative coating thickness over that stretched section. We require suppliers to use automated inline tension control systems. These systems dynamically adjust pulling force. They prevent unwanted copper elongation. Proper tension control guarantees uniform resistance across the entire spool.
Modern production lines must verify coating uniformity in real time. They use continuous dual-axis laser sensors. They also deploy confocal chromatic sensors. These optical tools detect microscopic thickness variations instantly. However, specialized applications introduce unique metrology challenges. Consider EV hairpin motors. These motors utilize thick PEEK flat wire. PEEK material remains opaque to standard optical lasers. Manufacturers must switch to Near-Infrared (NIR) interference sensors. NIR light penetrates the opaque PEEK layer. It bounces off the copper core. This advanced technique accurately maps the coating thickness on all four sides of the flat wire.
Finalizing procurement specifications requires a structured approach. Use this simple checklist to validate your engineering decisions before issuing purchase orders. Careful review prevents costly rework delays.
Identify your primary engineering bottleneck. Is it physical space? If you must maximize the slot fill factor, prioritize a Single build. If electrical stress dominates your concerns, prioritize dielectric breakdown. Select a Heavy or Triple build to survive voltage spikes. You cannot optimize both variables simultaneously. Choose your priority clearly.
Analyze how your factory will handle the material. Will technicians hand-wind the coils? Hand-winding introduces very low mechanical stress. You can safely use Single builds here. Will the wire endure high-speed automated winding? Automated machines inflict high mechanical stress. High-stress winding absolutely necessitates Heavy builds. It also requires high scrape abrasion ratings to survive the guiding pulleys.
Demand documented proof of quality. Ensure the specified thickness aligns with UL thermal aging archives. Request the dielectric strength test reports. More importantly, request the Infrared (IR) spectral analysis data. UL uses IR analysis to fingerprint the exact polymer chemistry. Counterfeiters often substitute cheap polymers under thick coatings. IR analysis exposes these counterfeit materials instantly. If you need assistance interpreting these test reports, please contact us for technical support.
The ideal thickness of an enamel coating remains a calculated compromise between required conductivity volume and necessary insulation integrity.
Assuming insulation thickness is physically negligible stands as the most common cause of coil failure and incorrect AWG procurement.
Always strip the polymer coating or use weight-equivalence testing before reverse-engineering burnt motor coils.
Engage actively with your suppliers. Demand detailed scrape abrasion data and ask for proof of inline optical measurement capabilities for your chosen build grade.
A: No. The insulation adds measurable thickness. Depending on whether it is a Single or Heavy build, the coated OD can perfectly mirror the bare diameter of a completely different, thicker gauge. This predictably leads to inaccurate resistance calculations and eventual coil burnout.
A: Not necessarily. Thermal class (e.g., 155°C, 200°C, 250°C) is dictated exclusively by the chemical composition of the polymer. Polyurethane melts at lower temperatures than Polyimide, regardless of physical thickness. Thickness primarily dictates breakdown voltage, not thermal limits.
A: Flat wire, often used in EV hairpin motors, requires highly specialized manufacturing. Thickness is controlled via polymer extrusion or multi-pass dies. It is evaluated continuously using multi-directional sensors. Lines utilize 4-sided fork configurations to ensure corner coverage remains perfectly uniform.
A: Enamel thickness does not determine current-carrying capacity. The bare copper cross-section (AWG) dictates your current limits based on acceptable temperature rise and current density. Enamel thickness only dictates the voltage breakdown rating (dielectric strength) between the individual turns.
